Bachelor Thesis · UFC

Design and Implementation of a Teleoperated Vehicle with Simulated Transmission and Force Feedback

Bachelor Thesis in Computer Engineering — Federal University of Ceará

Author
Inácio Rodrigues de Matos Galvão
Advisor
Prof. Dr. José Marques Soares
Co-advisor
Eng. Me. Artur Rodrigues Rocha Neto
Source code on GitHubAcademic poster

Hypothesis

Plain UDP over a home Wi-Fi network, combined with force feedback computed from an embedded IMU, is sufficient for responsive teleoperation on low-cost hardware.

Goal

Design, implement and validate a teleoperation architecture for a 1:5-scale Formula 1 vehicle, evaluating latency, packet loss, motor model fidelity, haptic response, autonomy and thermal behavior.

Context and motivation

Teleoperation systems are relevant in mining, space exploration and military operations — where latency and haptic feedback determine task precision. Existing commercial solutions cost over R$ 50,000 and are complex. This work demonstrates that equivalent architecture is viable on R$ 1,300 of open hardware.

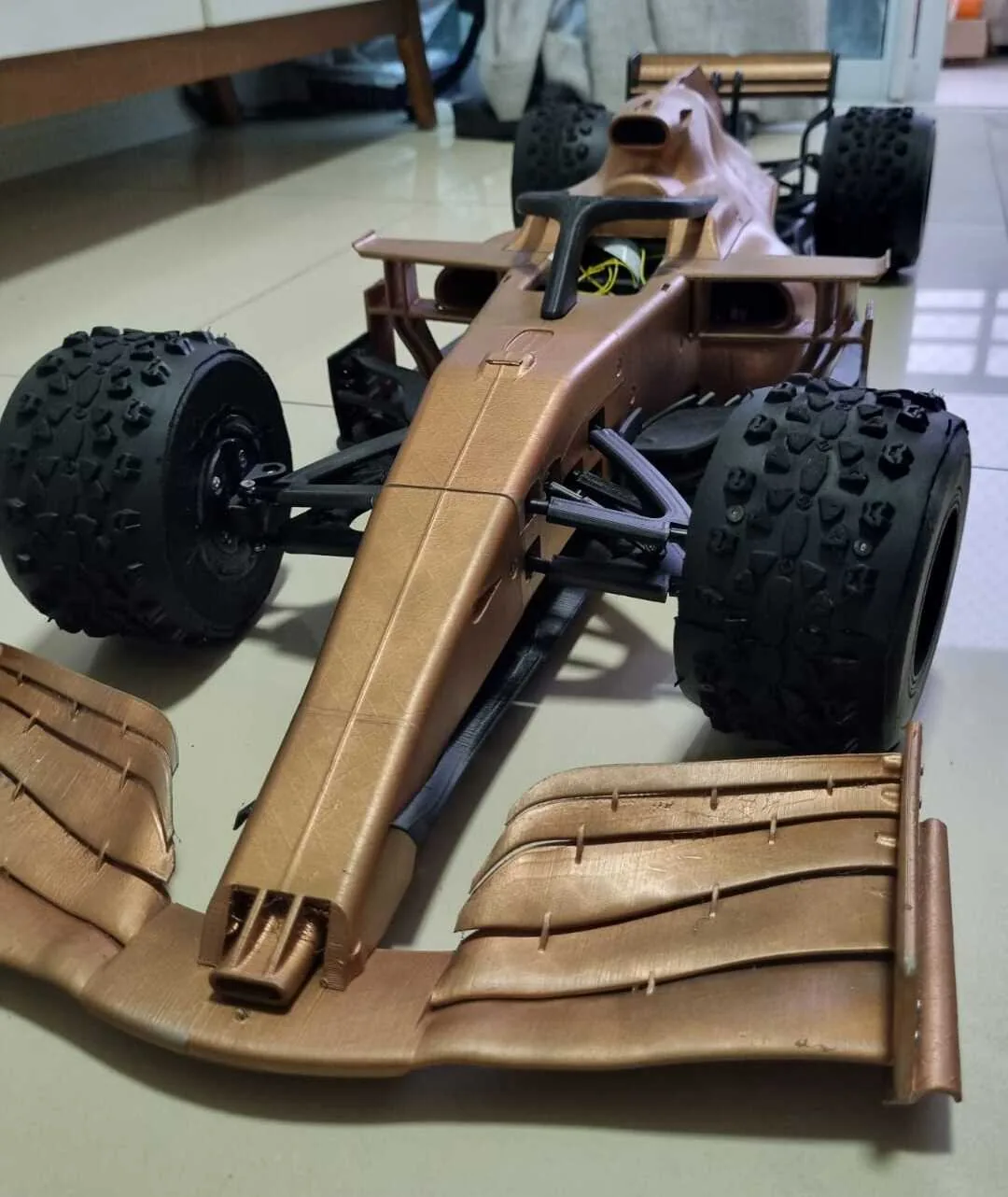

1:5-scale F1 prototype used in the 13 experimental sessions.
1:5-scale F1 prototype used in the 13 experimental sessions.

Architecture

Three layers: embedded vehicle (Raspberry Pi 4, camera, IMU, motor, servos), PC client (decodes MJPEG video, computes force feedback, shows telemetry) and Logitech G923 simulator. Communication uses three independent UDP ports — video, telemetry and commands — so that video frames don't block the 100 Hz required by haptic feedback.

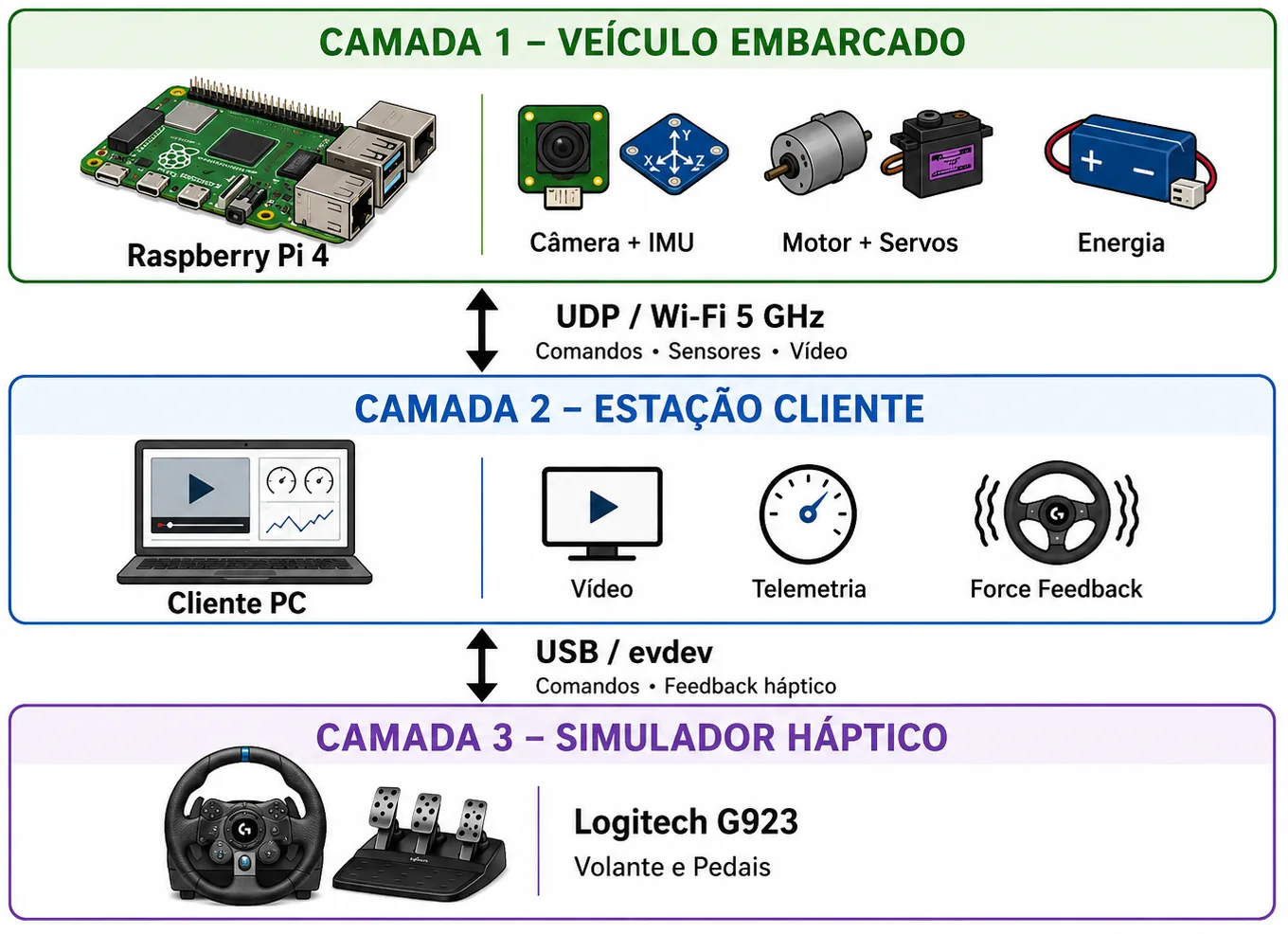

Three-layer architecture and three independent UDP ports (video, telemetry, commands).
Three-layer architecture and three independent UDP ports (video, telemetry, commands).

Stack and hardware

Embedded (vehicle)

Raspberry Pi 4 (8 GB) · OV5647 5MP CSI camera · BMI160 IMU · DC 775 motor · BTS7960 H-bridge · 3× MG996R servo · PCA9685 · Python

Client (PC)

Python · OpenCV · Tkinter · evdev · raw UDP

Simulator

Logitech G923 · 900° wheel · Progressive pedals · Paddle shifters · evdev force feedback

Power monitoring

Arduino Pro Micro · 2× ACS758 Hall effect · INA219 · 3S LiPo voltage divider

Motor model

DC 775 motor with five-gear transmission modeled as a first-order system G(s) = K / (τ_eff · s + 1), where τ_eff = τ_base(g) · M_zone. τ_base grows from 2 s (1st gear) to 10 s (5th); M_zone is 1.0 (IDEAL), 10.0 (SUBOPTIMAL) or 25.0 (POOR). Operating in the wrong gear for the RPM range penalizes response, mimicking a real transmission.

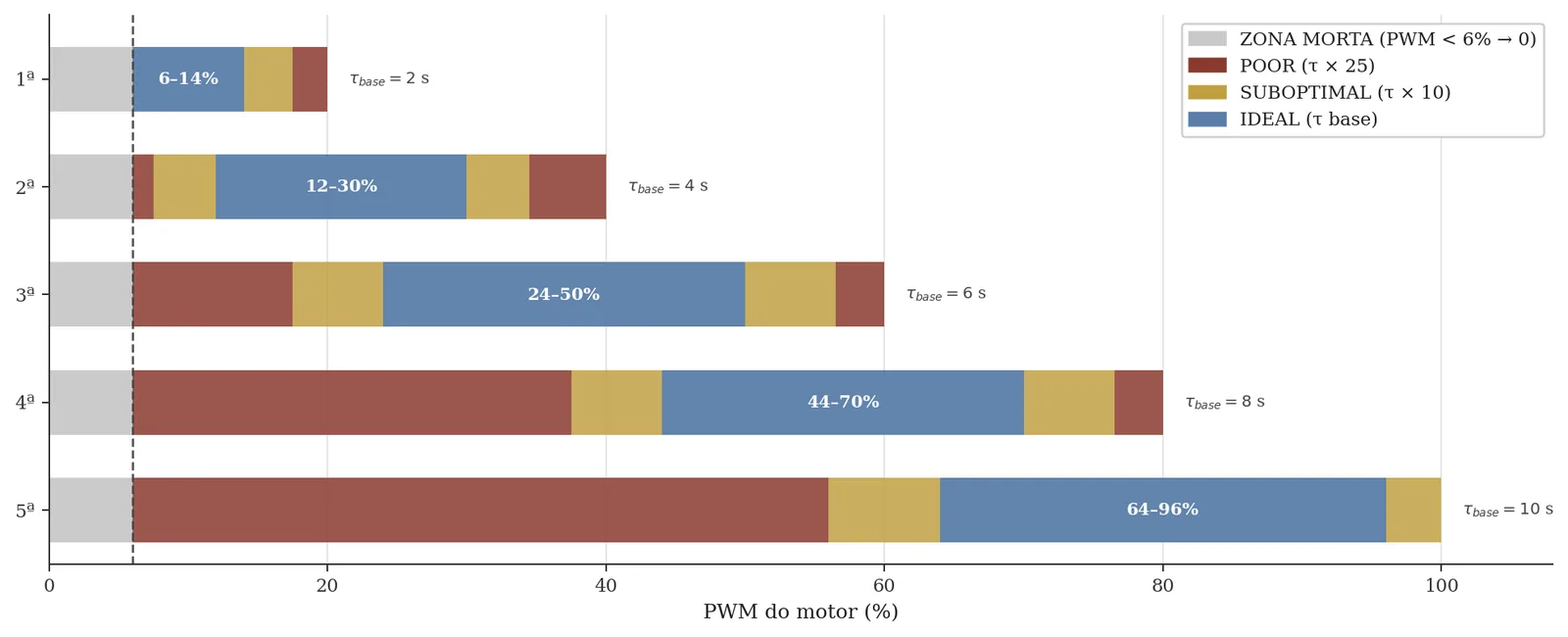

Gear efficiency zones and τbase time constants.
Gear efficiency zones and τbase time constants.

Force feedback (G923)

Seven effect types across eight parallel instances: conditional effects (centering, damping, friction, inertia) updated at 1 kHz inside the wheel firmware; lateral force based on BMI160's lateral G at 100 Hz; virtual hard stops at travel limits; and impact vibration synchronized with sensors. Per-effect caching reduced sensor-thread blocking from 12–60 ms to 0–15 ms per packet.

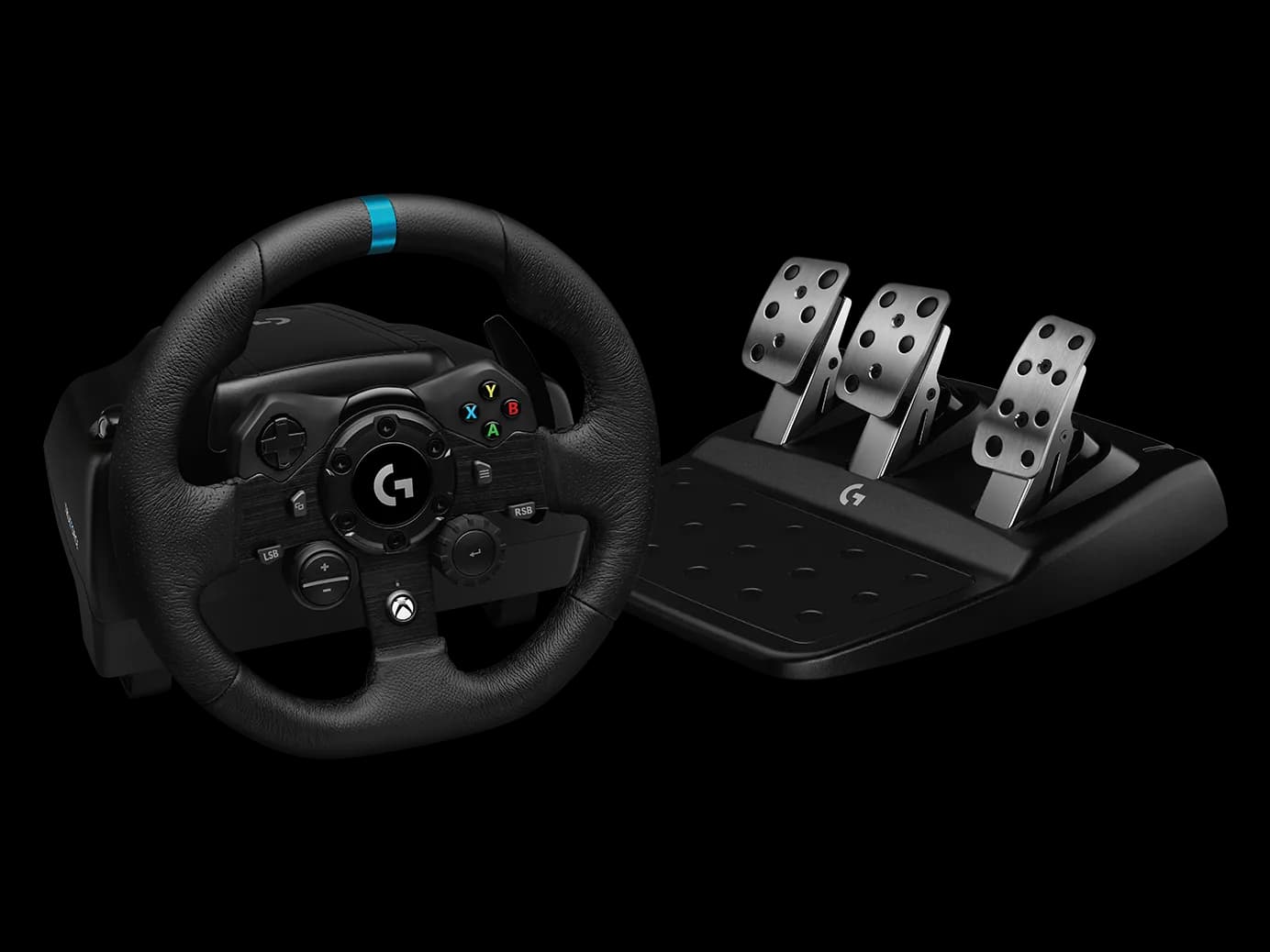

Logitech G923 — 900° wheel, progressive pedals and native force feedback via Linux evdev.
Logitech G923 — 900° wheel, progressive pedals and native force feedback via Linux evdev.

Experiments

13 experimental sessions — 9 indoor (free wheels, 27±2 °C) and 4 outdoor on a 55.81 m track — totaling ~165 min and ~983k aggregated samples.

Indoor · 9 sessões · 136,5 min
~814 mil samples
  • S01Motor escalonado 1ª → 3ª18.0 min
  • S02Direção + freio isolados12.0 min
  • S03Resolução × filtros de PDI15.3 min
  • S04Uso representativo completo15.0 min
  • S05Curva de descarga da bateria47.4 min
  • S06Trocas de marcha rápidas4.4 min
  • S07Filtros de PDI combinados7.0 min
  • S08Latência fim a fim5.0 min
  • S09Calibração do BMI16012.4 min
Outdoor · 4 sessões · 28,1 min
~168 mil samples
  • S1-extRolamento unidirecional2.0 min
  • S2-extDireto sem rolamento15.7 min
  • S3-extDireto reforçado (falha térmica)5.7 min
  • S4-extValidação do motor retrabalhado4.7 min

Results

All targets met. End-to-end latency at 1.1× the goal, with bottleneck on shared Wi-Fi — not on the vehicle. Migrating to a dedicated link would reduce p50 by an order of magnitude with no code changes.

UDP communication
Latência fim a fim (p50 / p99)55,3 / 107,7 ms
Latência interna RPi (p50 / p99)0,22 / 0,40 ms
Perda de pacotes (1080p)0,46 / 0,13 %
Video and sensors
Câmera OV5647 (480p / 1080p)60 / 54 fps
BMI160 — taxa / erro |g|100 Hz / < 1 %
Calibração geométrica BMI160< 0,5°
Violações de budget (10 ms)0 / 983 mil
Force feedback
Latência sensor → atuação (p50 / p99)5,0 / 10,5 ms
Força lateral em pista (pico)39 %
Vibração de impacto (pista)92–96 %
Power, thermal and mechanical
Consumo médio (indoor / pista)8,8 / 27,0 W
Autonomia projetada90–120 min
Temperatura CPU (média / pico)< 50 °C
Temperatura motor (S1 / S2 / S3)33 / 40 / 56 °C
Cumulative distribution of end-to-end latency — p50 at 55.3 ms.
Cumulative distribution of end-to-end latency — p50 at 55.3 ms.

Conclusion

Plain UDP + first-order model + direct force feedback deliver responsive teleoperation on low-cost hardware. The main limitation was structural, not electronic: PLA chassis and motor mounts gave way on track. The work validates the hypothesis and opens room for evolution with a metal chassis and dedicated network link.
